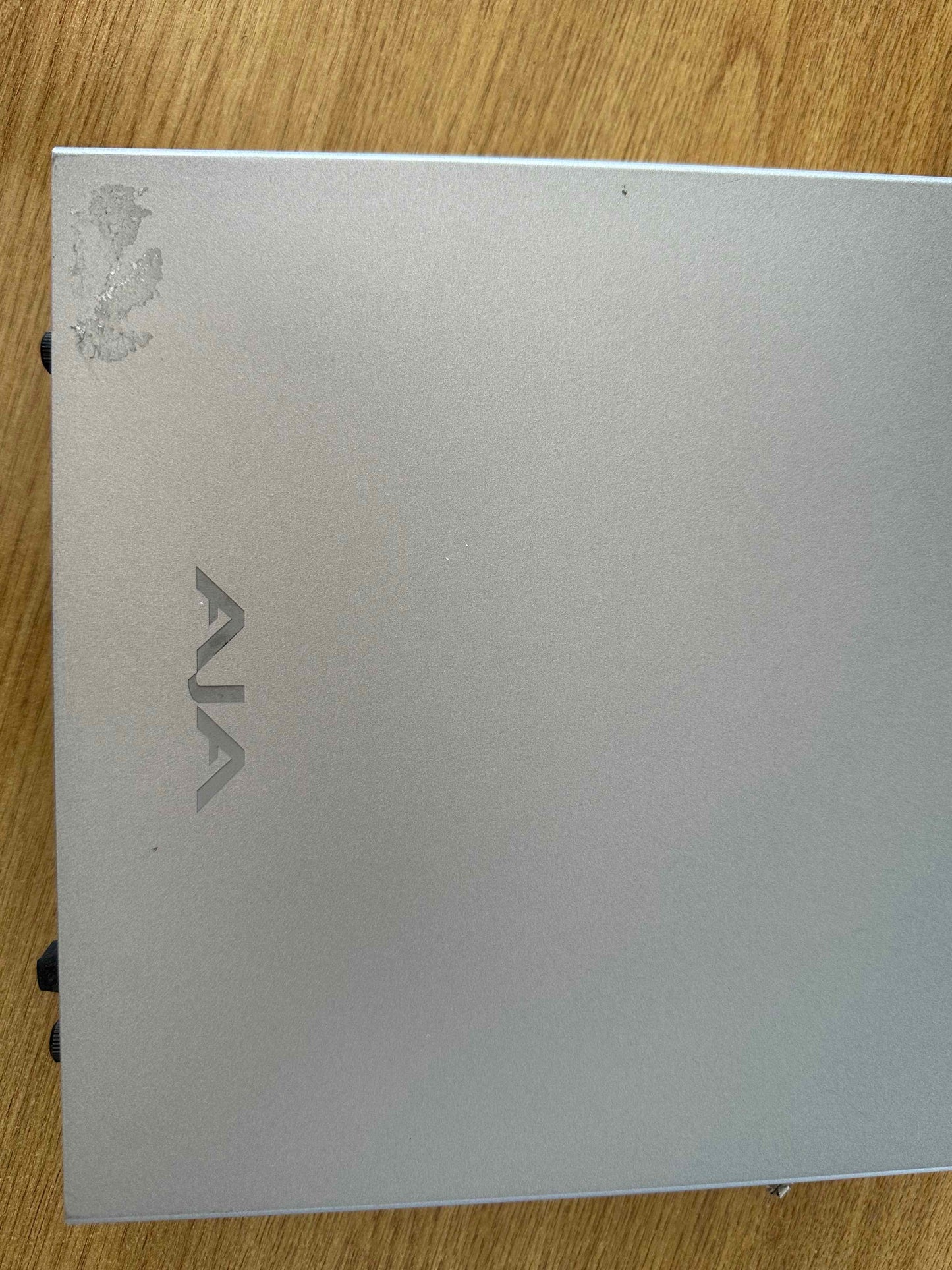

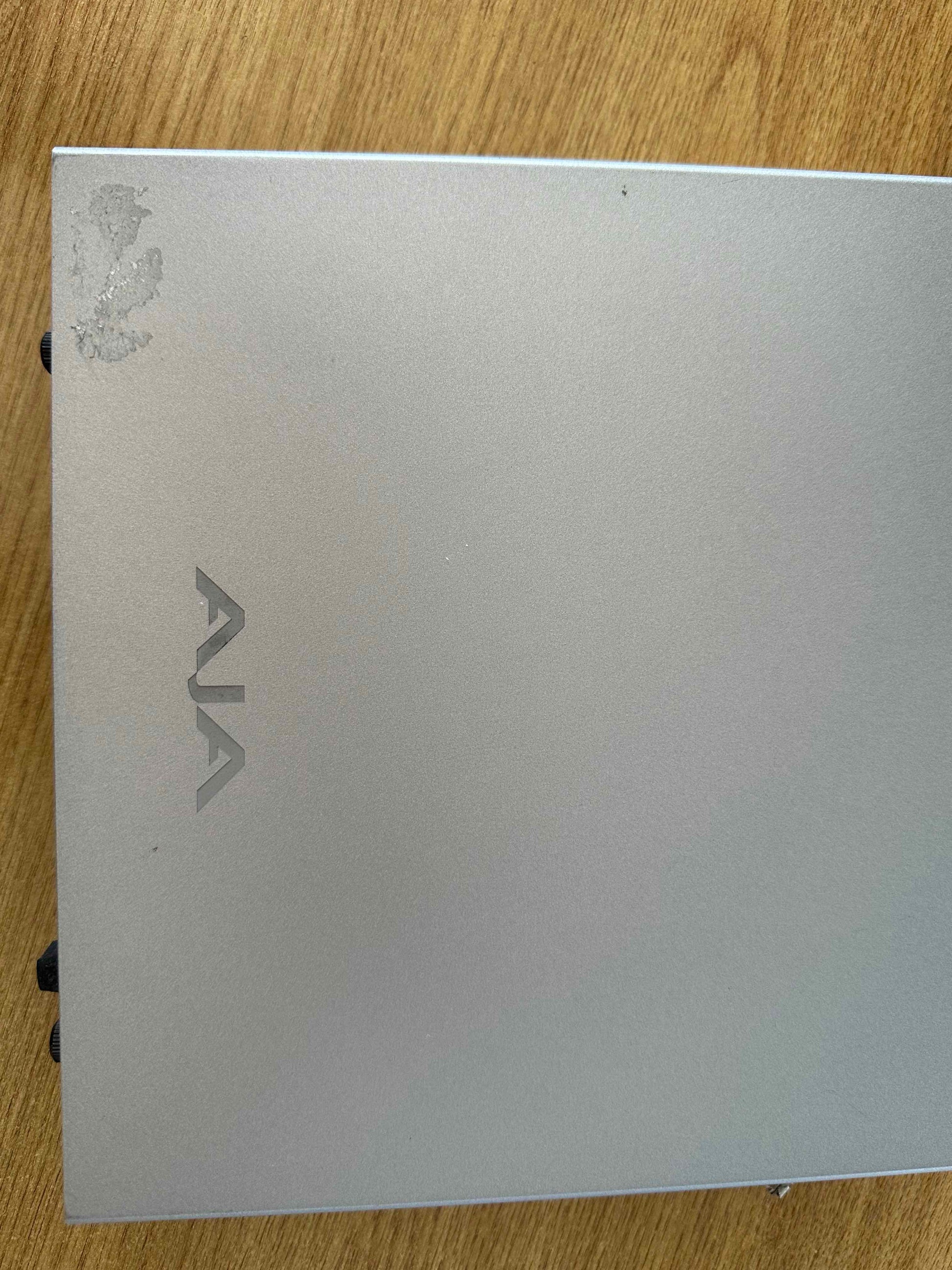

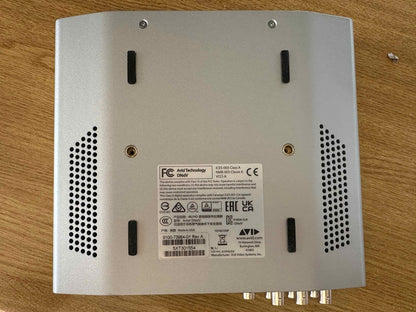

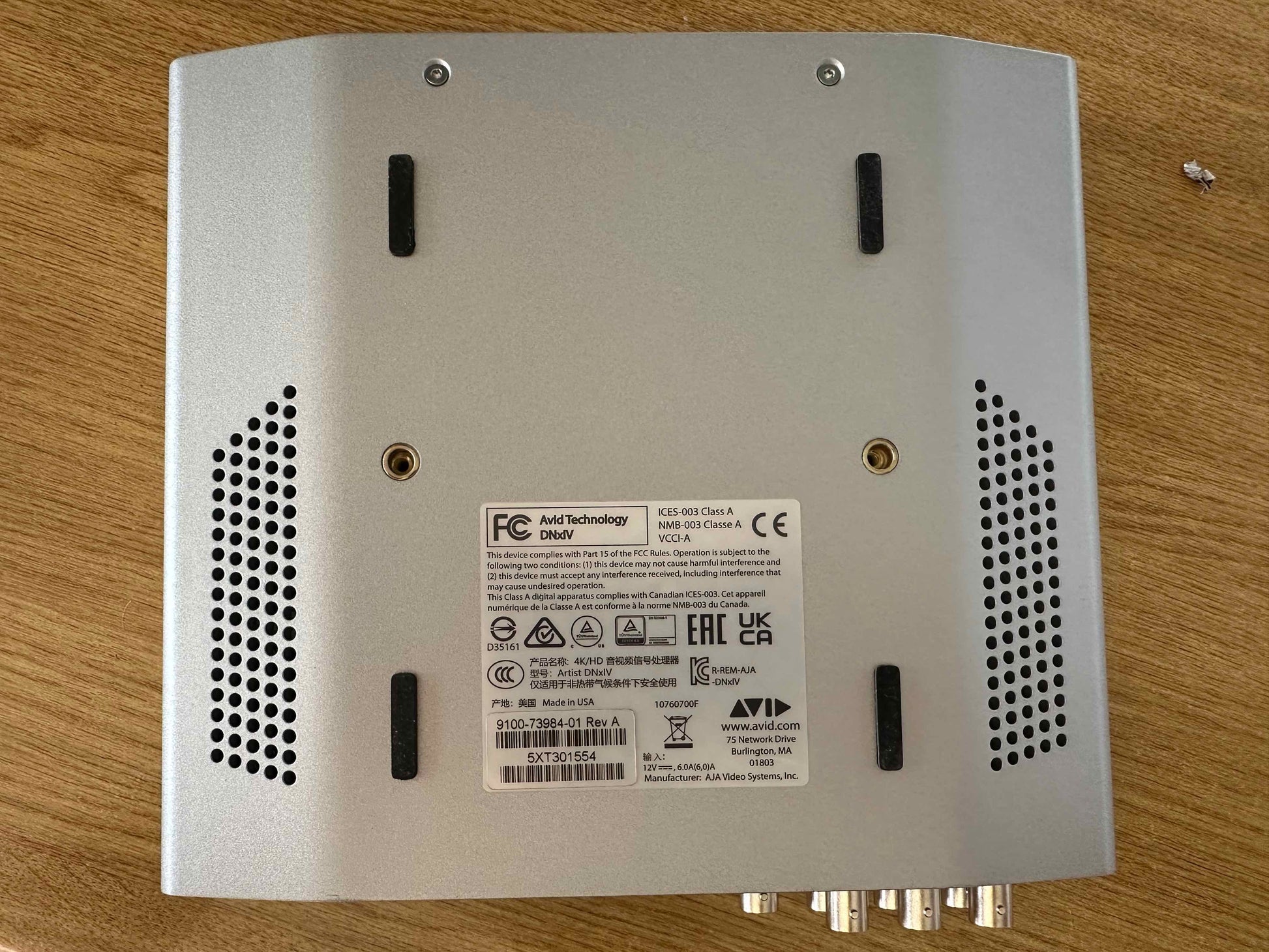

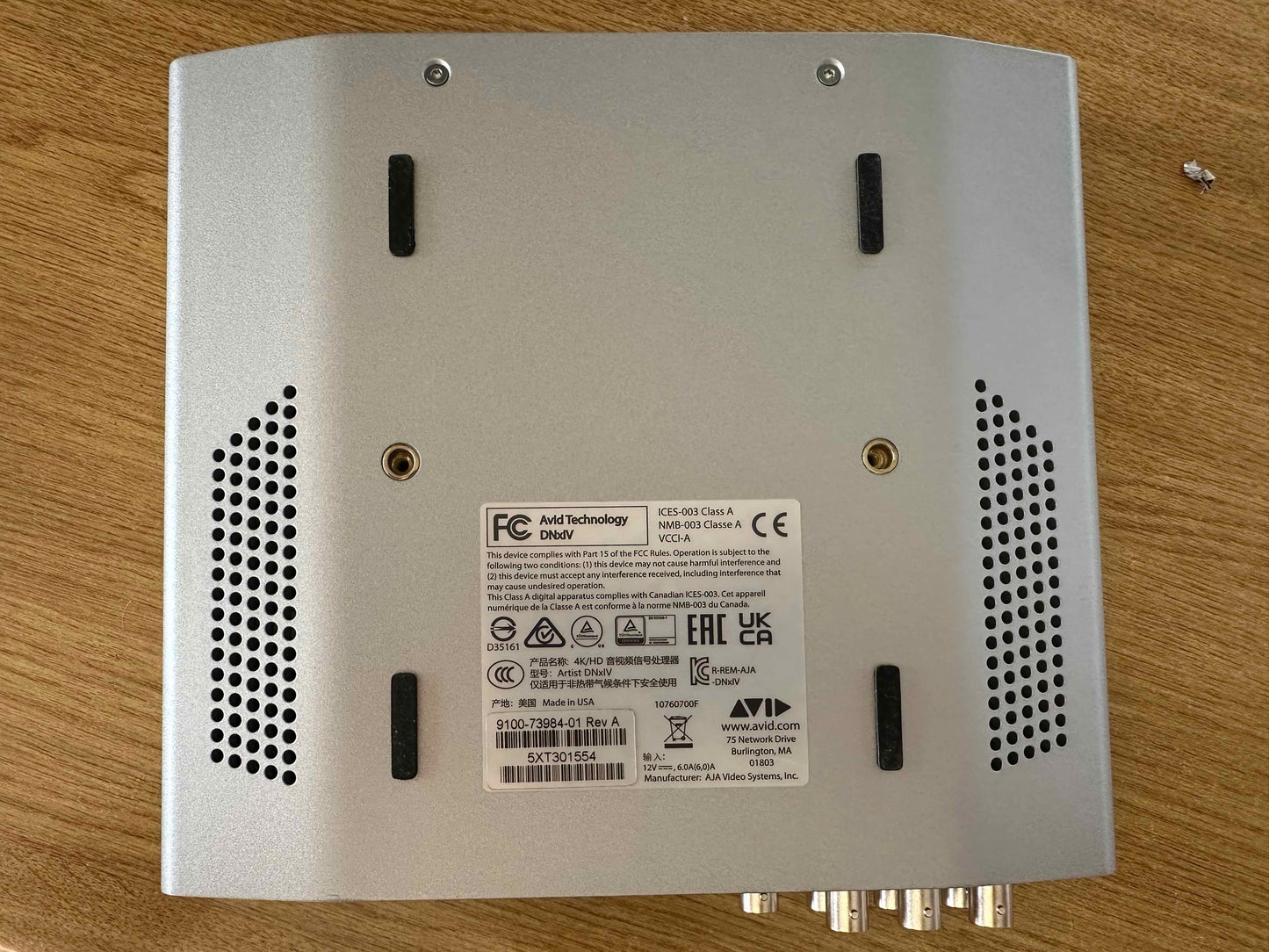

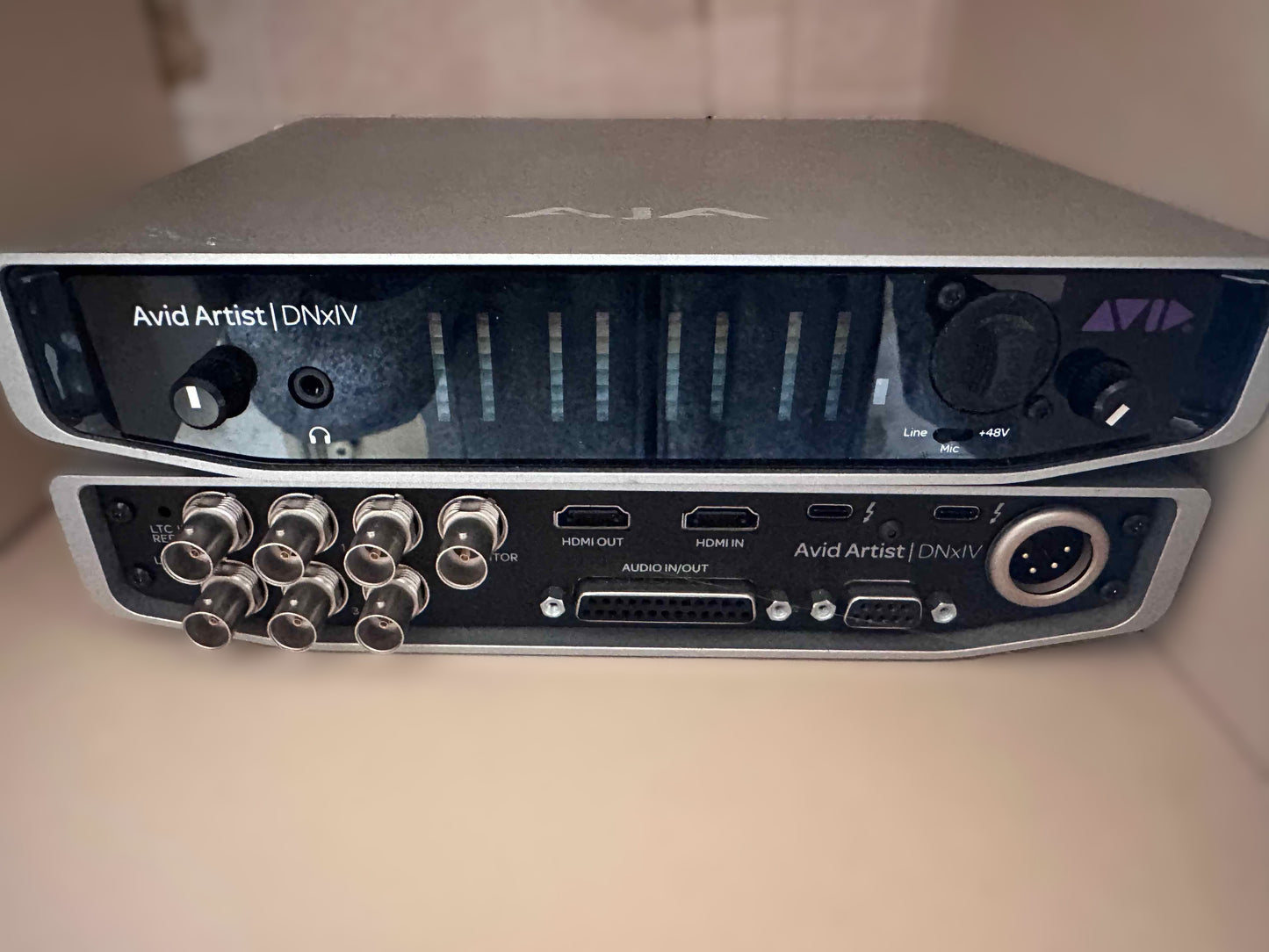

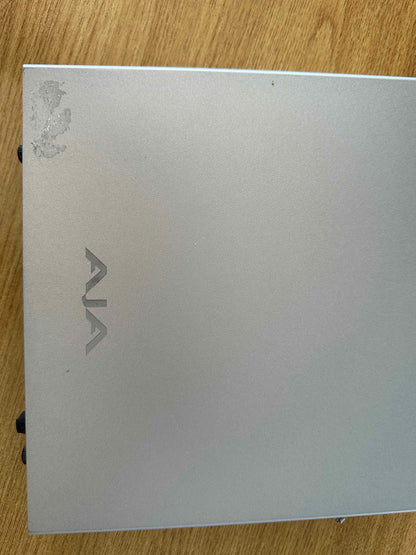

Avid Artist DNxIV

selling these 2x Avid Artist DNxIV

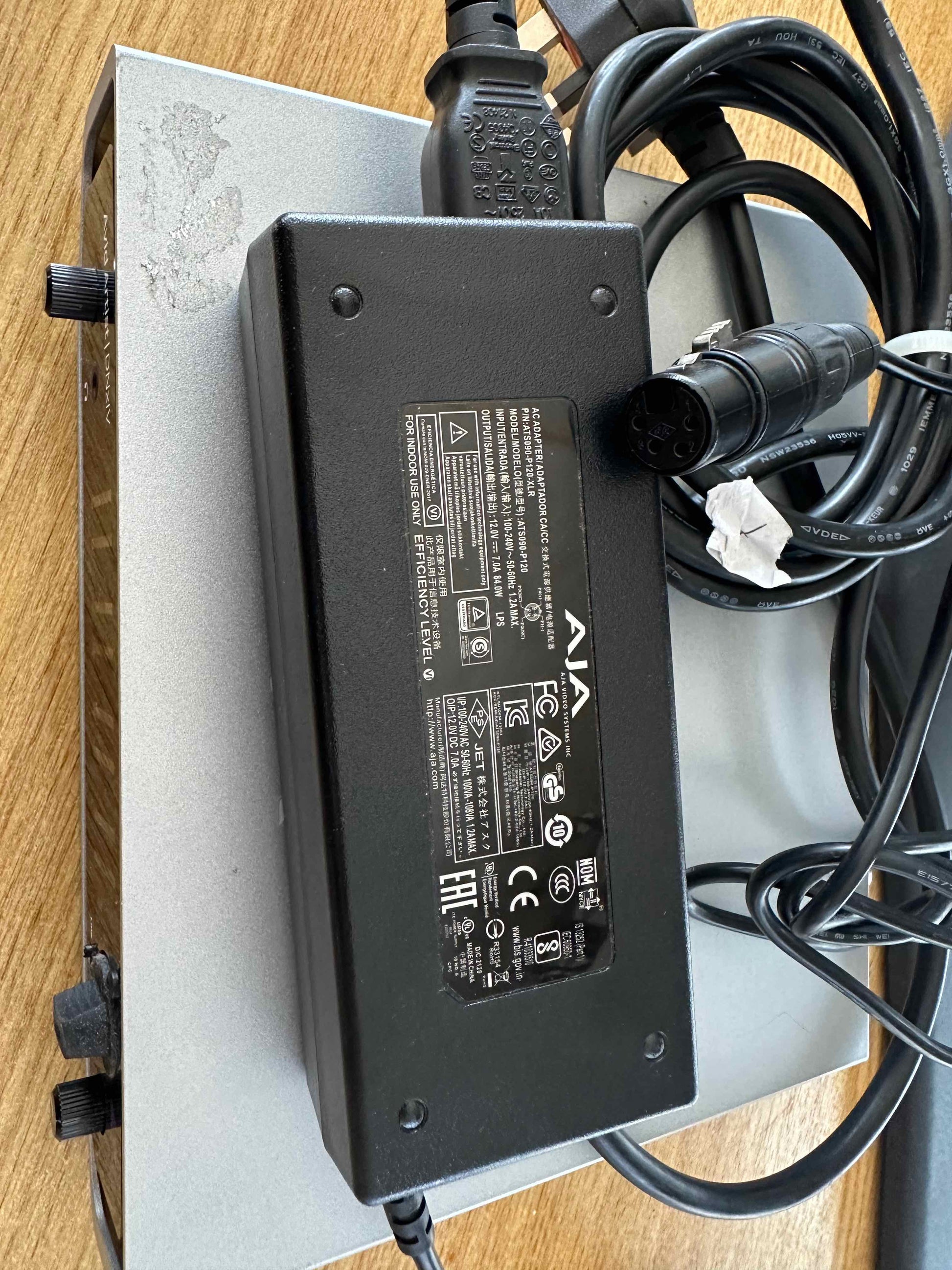

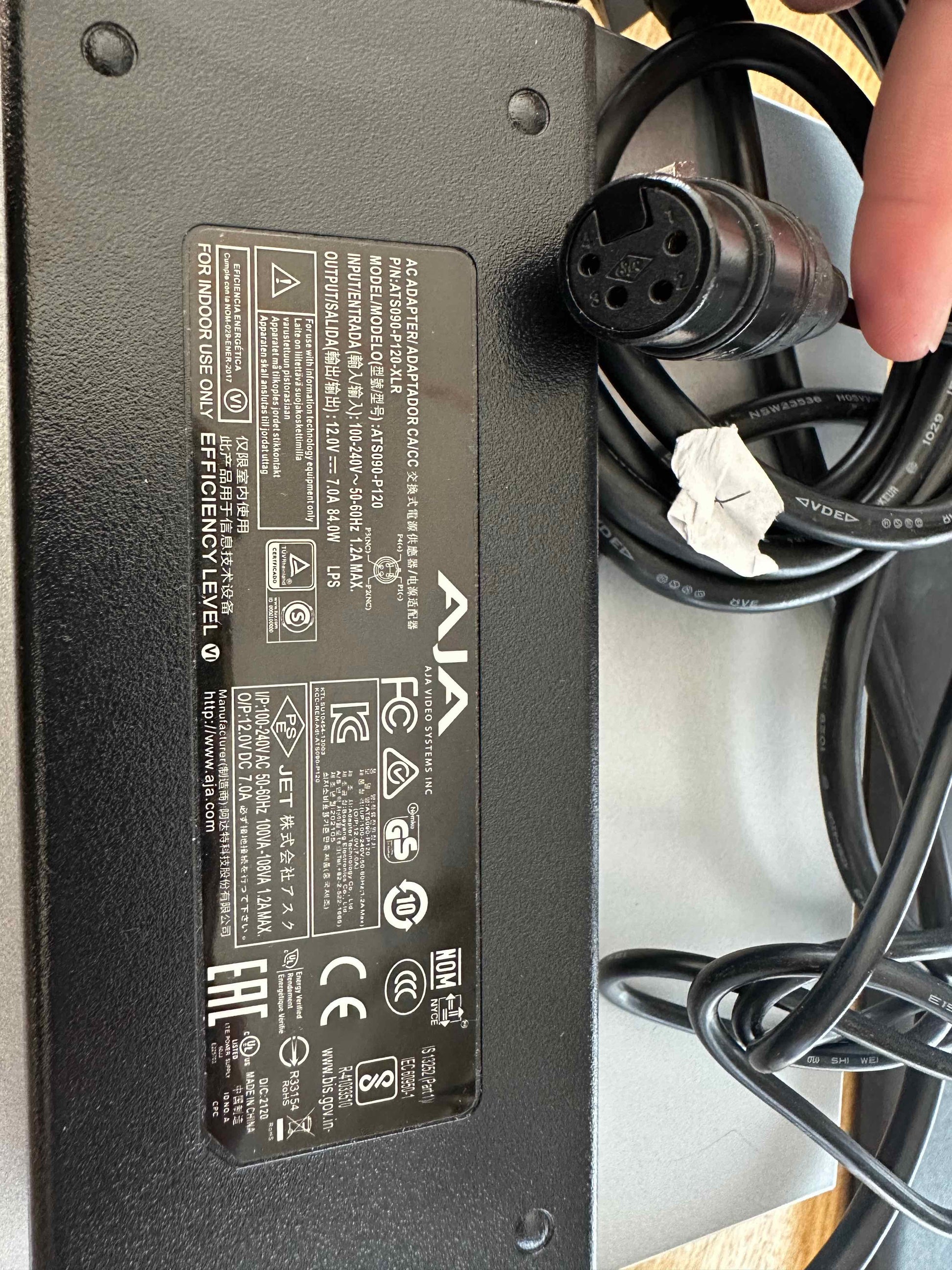

1x with power unit - €300
1x no power unit - €260

Postage Free

Larger discount if both bought together, contact us via webchat or call us!

Key Features

DCI 4K & UHD I/O via 12G-SDI & HDMI 2.0
4K/UHD/HD to 2K/HD/SD Down Conversion
Dual Thunderbolt 3 Ports
Downstream Keyer
8-/10-/12-Bit 4:2:2 and 4:4:4 Support
HDR 10 and HLG Support
16-Channel Embedded Audio on SDI
8-Channel Embedded Audio on HDMI
RS-422 VTR Control, Reference, LTC Input

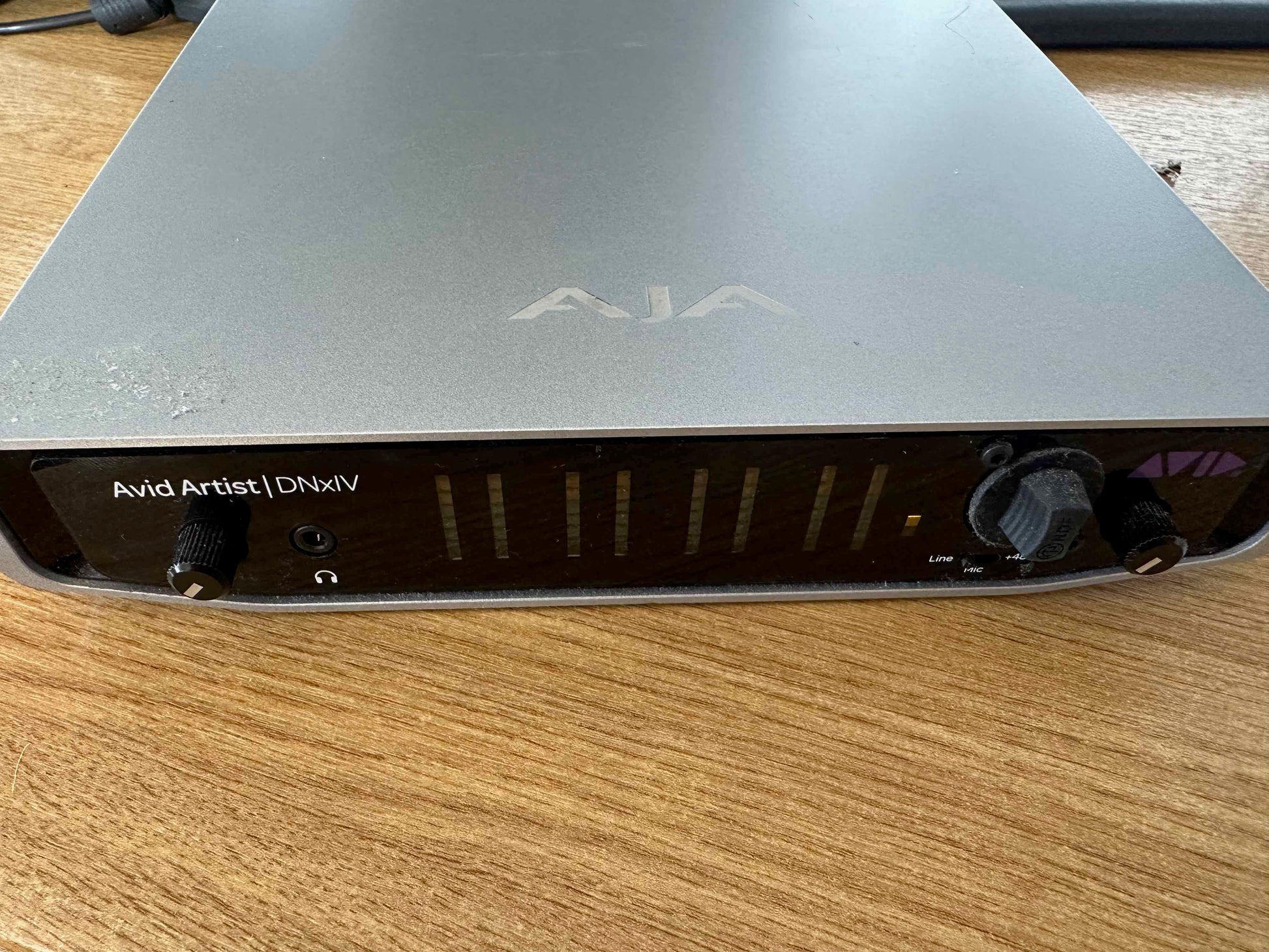

Front-Panel Mic In and Headphone Jack

The Avid Artist DNxIV Hardware is a portable capture and output device that offers professional video and audio connectivity with support for DCI 4K and UltraHD workflows. It handles a wide range of formats from 4K to SD over both SDI and HDMI. Supporting Thunderbolt 3 technology, the DNxIV allows even greater bandwidth between host computer systems and Thunderbolt devices. The dual Thunderbolt 3 ports allow you to daisy chain up to 6 peripherals such as high-resolution displays and high-capacity storage. A built-in downstream keyer takes advantage of 4K resolution to provide clean composites.

Featuring four bidirectional 12G-SDI inputs/outputs as well as an HDMI 2.0 input and output, the DNxIV is capable of capturing and outputting 4K signals over quad-link SDI or HDMI. It is also capable of handling UltraHD, 2K, HD, and SD resolutions and supports HDR. When working with 4K content, the DNxIV outputs an HD-SDI down-converted signal on a dedicated BNC connector. This HD signal can be used to output to HD recorders or monitors. Embedded 16-channel SDI and 8-channel HDMI audio are supported as well as analog audio inputs/outputs via a standard DB-25 connection. The front panel sports an XLR mic input with 48V phantom power as well as a headphone jack with volume control. A 4-pin XLR power input is available for powering the DNxIV with batteries or the included AC adapter.
Downstream Keyer
The DNxIV supports graphics with alpha channel over video, matte, or frame buffer. It also allows you to key frame buffer content over incoming video or matte.
Functions

Select the frame buffer primary video format settings
Select view and edit input selections and audio mapping
Configure High Dynamic Range settings for HDMI output
Configure video such as composite black level, progressive format, and ancillary data
Closed Caption option
Configure audio options such as analog audio monitor level
Select and mix audio sources for monitoring
Setup and control the insertion of keyed video from the frame buffer or graphics files with alpha channel
Load a lookup table (LUT) file to adjust the calibration of color for any source
Monitor SMPTE 12M-2 time code and configure time code window burn output

Additional Features

Two Thunderbolt 3 ports
Four bidirectional SDI inputs/outputs
SDI I/O supports either one 12G-SDI stream, or up to four 3G-SDI streams with up to 16-channels of embedded audio
One 3G-SDI monitor output with 8 channels of embedded audio, supports 2K/HD down conversion
One HDMI 2.0 input with 8 channels of embedded audio
One HDMI 2.0 output with 8 channels of embedded audio, supports 4K, HDR or HD
10-bit 4:2:2 and 4:4:4 workflow support
Supports HDR 10 and HLG over HDMI - 12-bit RGB, BT2020 (HLG support is application dependent)
Built-in downstream keyer
Backwards compatible with existing Thunderbolt hosts
Simultaneous SDI and HDMI outputs
Multi-channel audio I/O via DB-25 connector
RS-422 VTR control
Reference and LTC input/output
Front-panel XLR mic/line input with 48V phantom power and gain control
Stereo headphone output with gain control

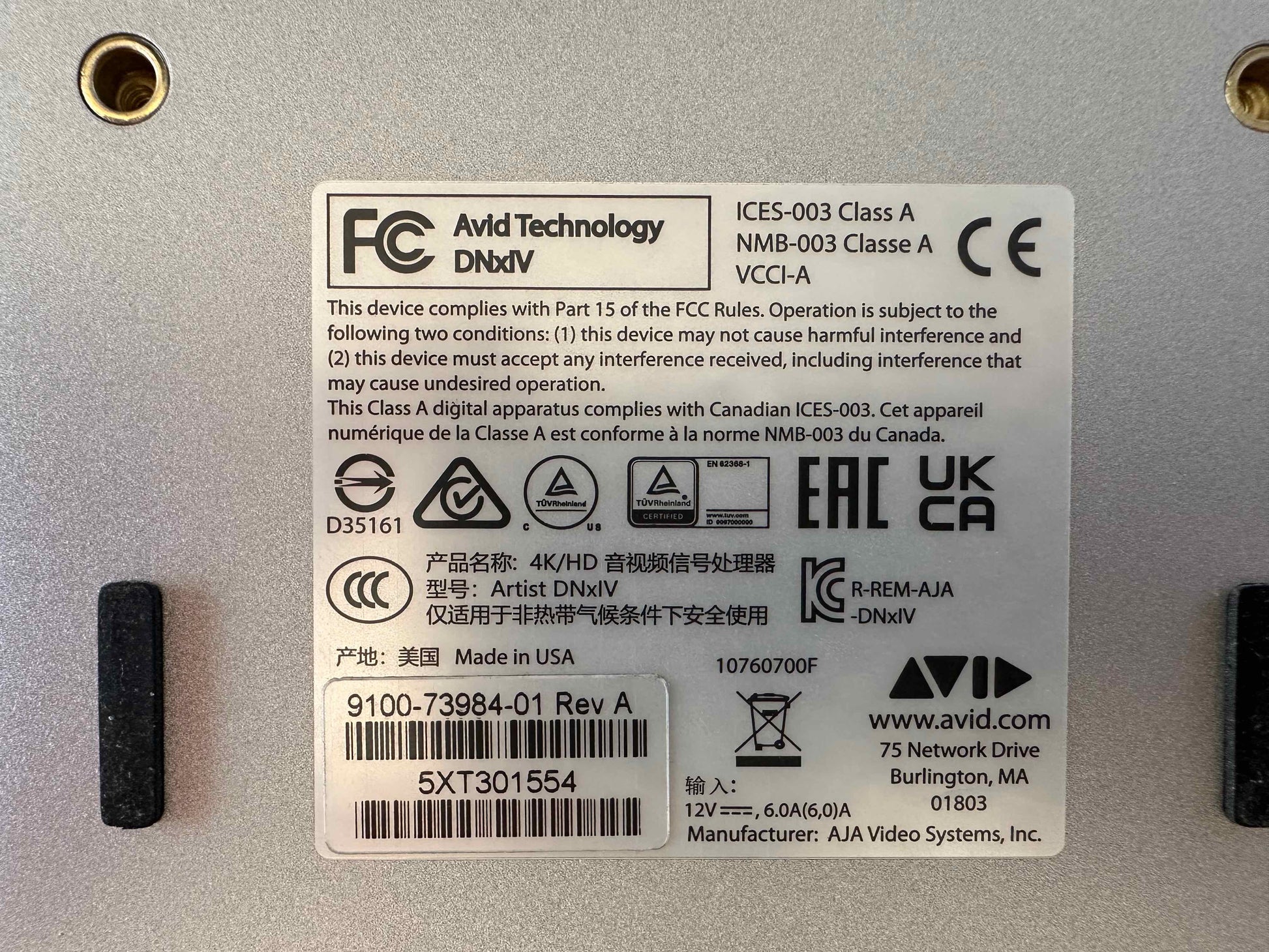

4-pin XLR 12V power for battery or AC power supply
